HEAVY DUTY 100mm (4″) ,150mm (5.9″) ,200mm U SHAPE TYPE FENCE POST FOOT,SUPPORT ON PROFILE-pin ANCHOR; 5mm,galvanised

Price range: £15.49 through £31.99 including VAT

Add to wishlist
SKU: PROFU5 Categories: , ,

Description

ONE HEAVY DUTY GALVANISED U TYPE FENCE POST FOOT,SUPPORT, ANCHOR; 5mm THICK

Description

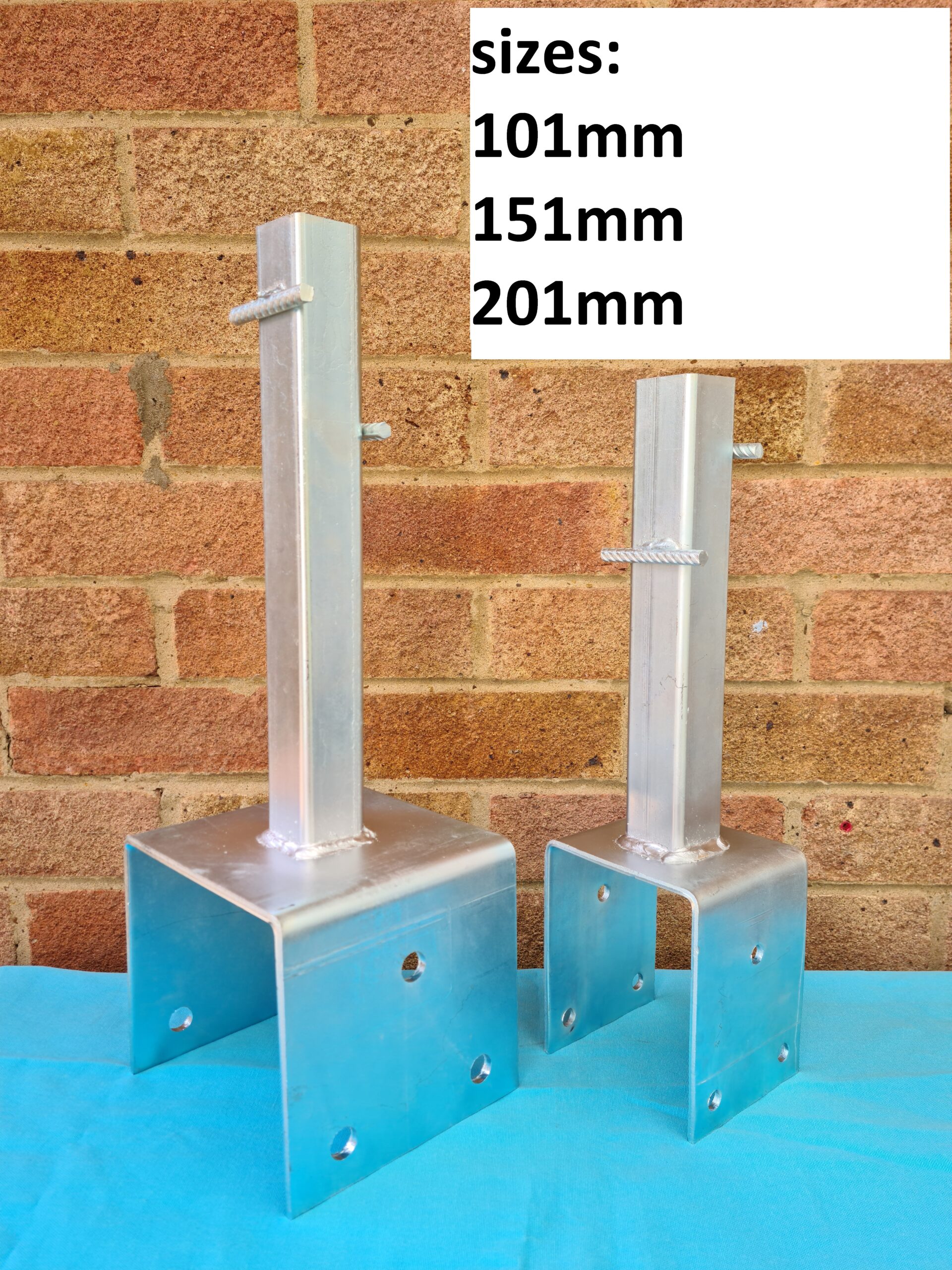

Our post supports are designed to fit the following post :



100mm POST (4″)
TOTAL HEIGHT 382mm ;
PLATE : 101mm x 100mm x h132mm
pin 40mm x 40mm
pin lenght 250mm
2 x 3 (8mm holes)
thickness 5mm
a=101mm
b=132mm
c=100mm
d=250mm



150mm POST (5.9″)
TOTAL HEIGHT 460mm ;
PLATE : 151mm x 150mm x h140mm
pin 40mm x 40mm
pin lenght 250mm
2 x 3 (8mm holes)
thickness 5mm
a=152mm
b=140mm
c=150mm
d=320mm



200mm POST
TOTAL HEIGHT 460mm ;
PLATE : 201mm x 150mm x h140mm
pin 40mm x 40mm
pin lenght 250mm
2 x 3 (8mm holes)
thickness 5mm
a=202mm
b=140mm
c=150mm
d=320mm

Post support gives the post necessary protection against the attack of termites and moisture.

It provides a quick and affordable method of fastening timber post. This kind of post anchor not only protects the post from corrosion, but also fixed it in the desired place firmly

Advantages:

•             Comply with building code requirements

•             Long term of providing protection

•             Enhance the stability of the post

•             Perfect for timber post

•             Anti-rust

•             Can be used in humid environments

•             Additionally, the zinc plating means it is corrosion resistant so that it can be used for a very long time and makes your cost effective

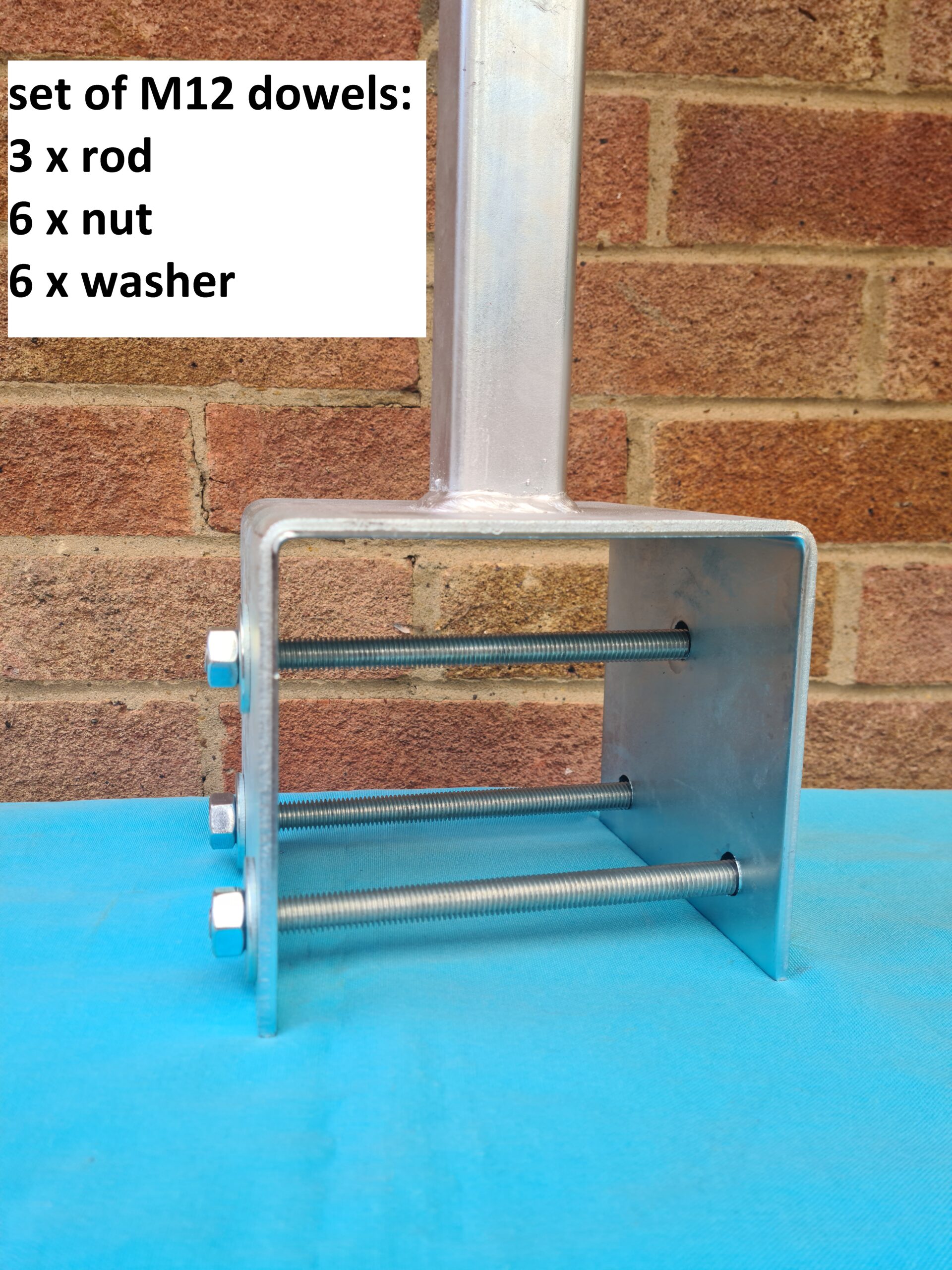

SET OF FIXINGS / CONNECTORS /DOWELS AVAILABLE HERE :
https://www.adnacomponents.co.uk/product/set-of-dowels-connectors-100mm-150mm-200mm/





Additional information

Weight 3 kg
