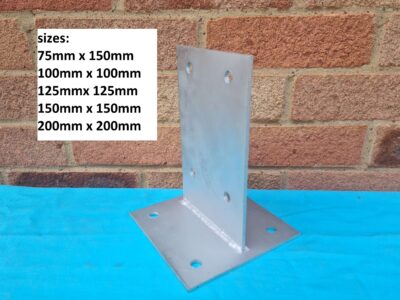

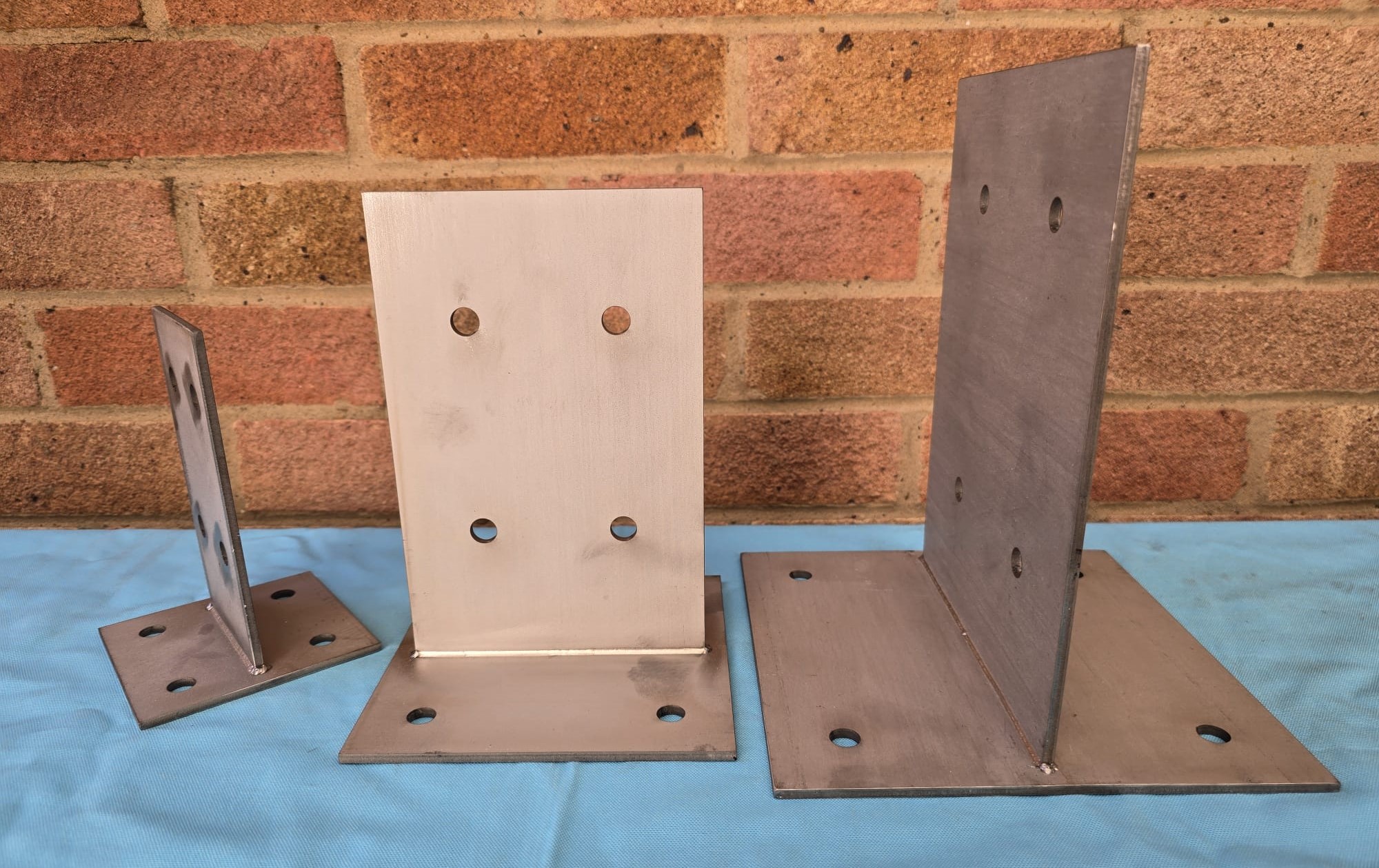

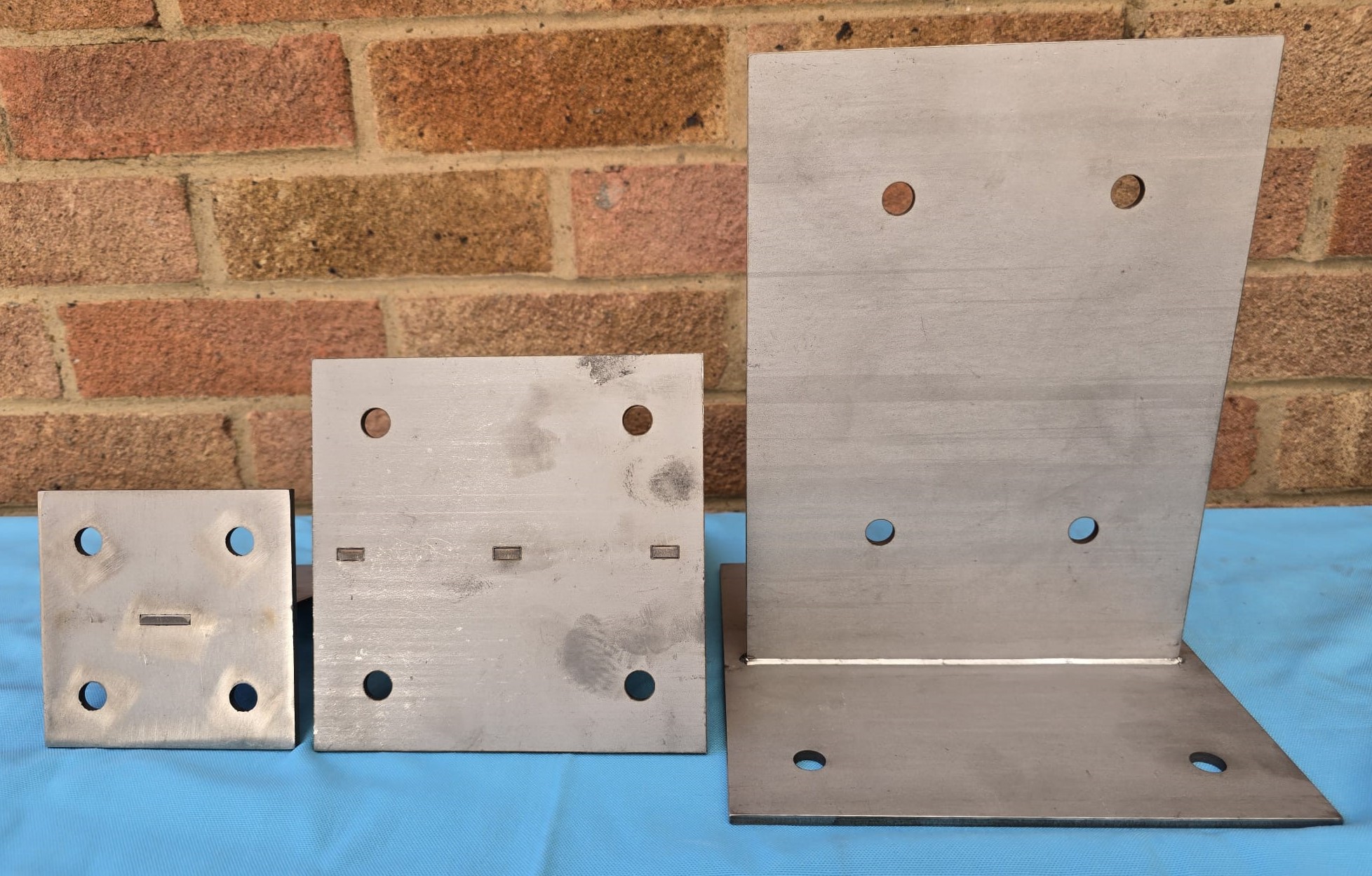

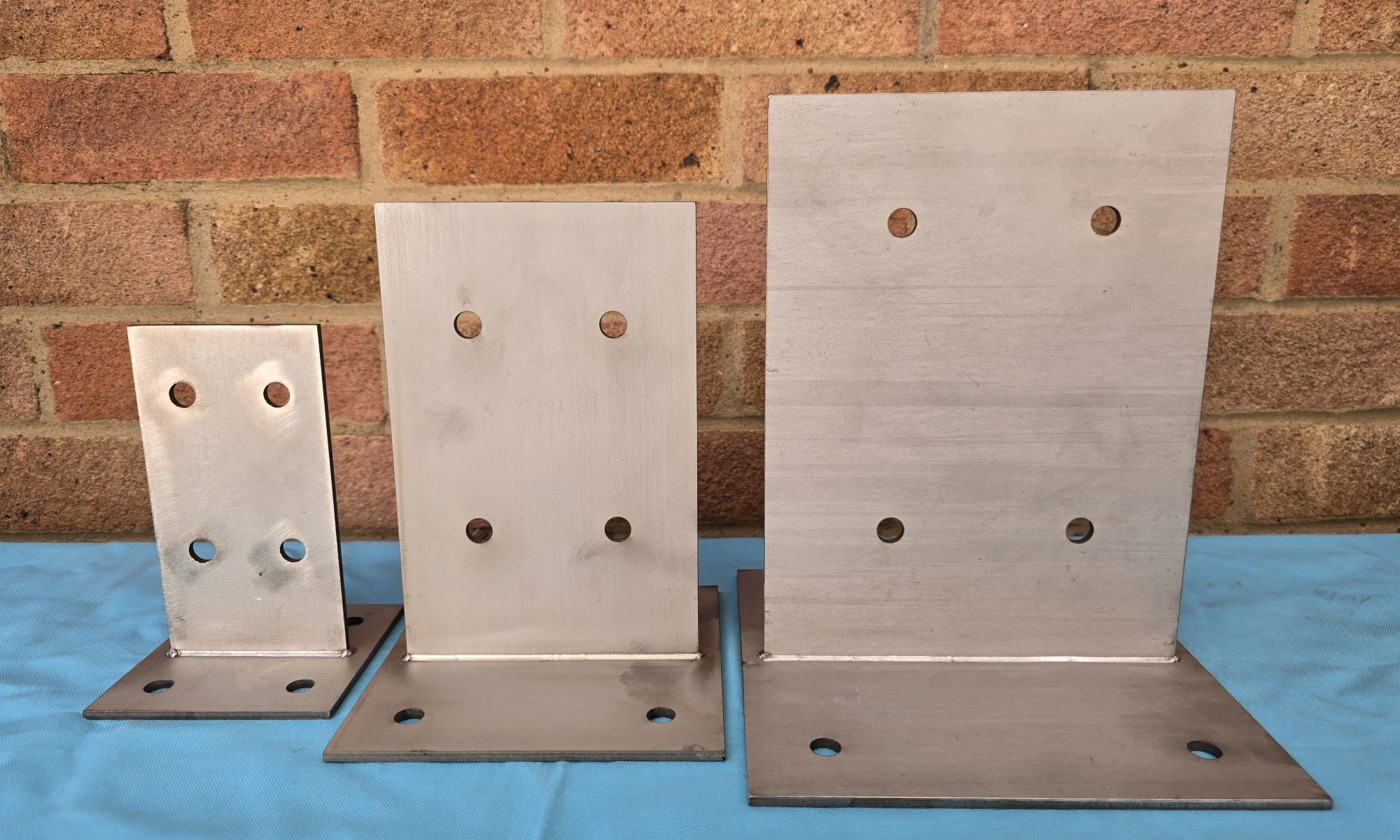

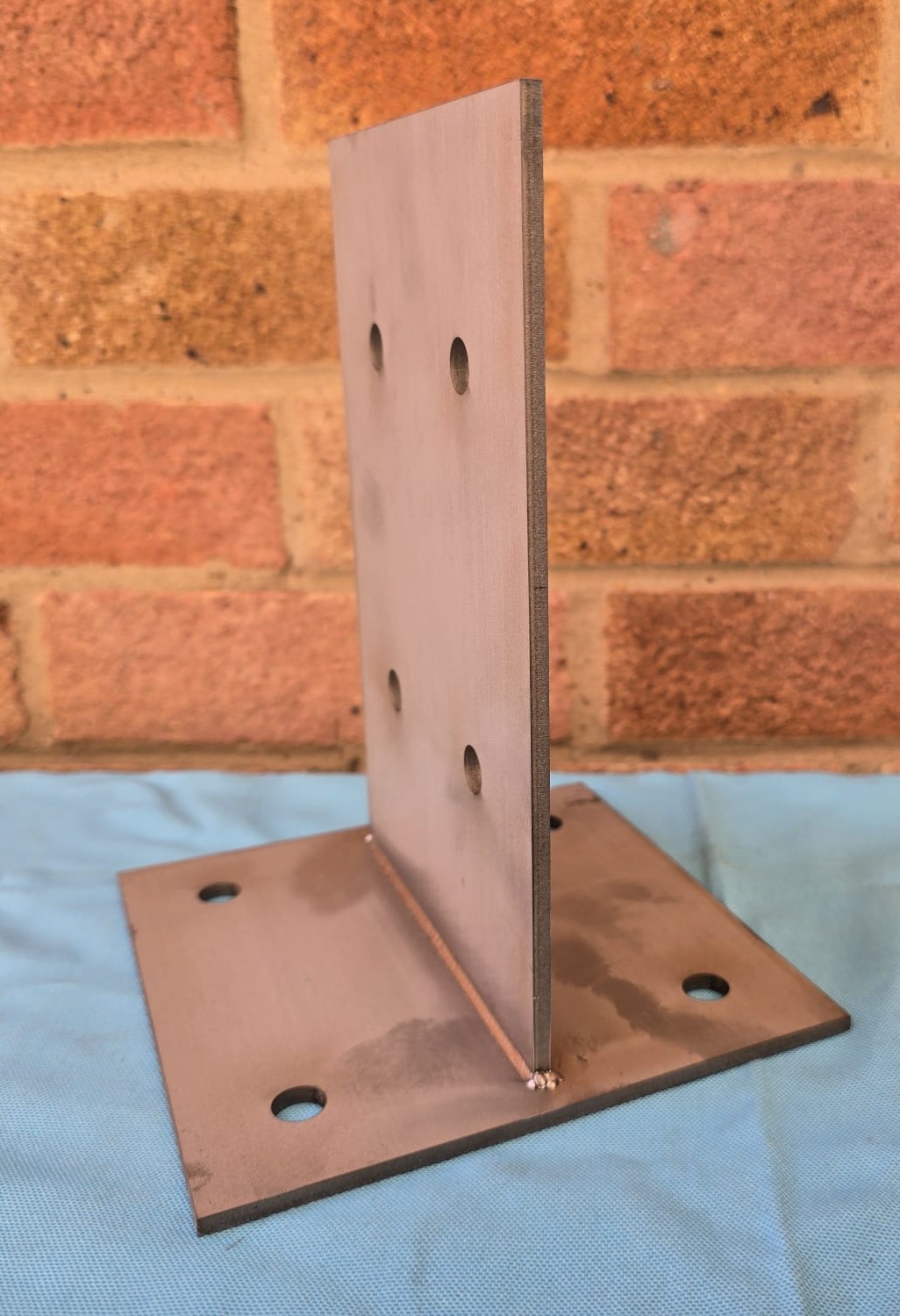

STAINLESS STEEL T BLADE BOLT DOWN POST SUPPORT, TIMBER CONNECTOR/CONCEALED BASE

304 grade steel

8 x  12mm holes

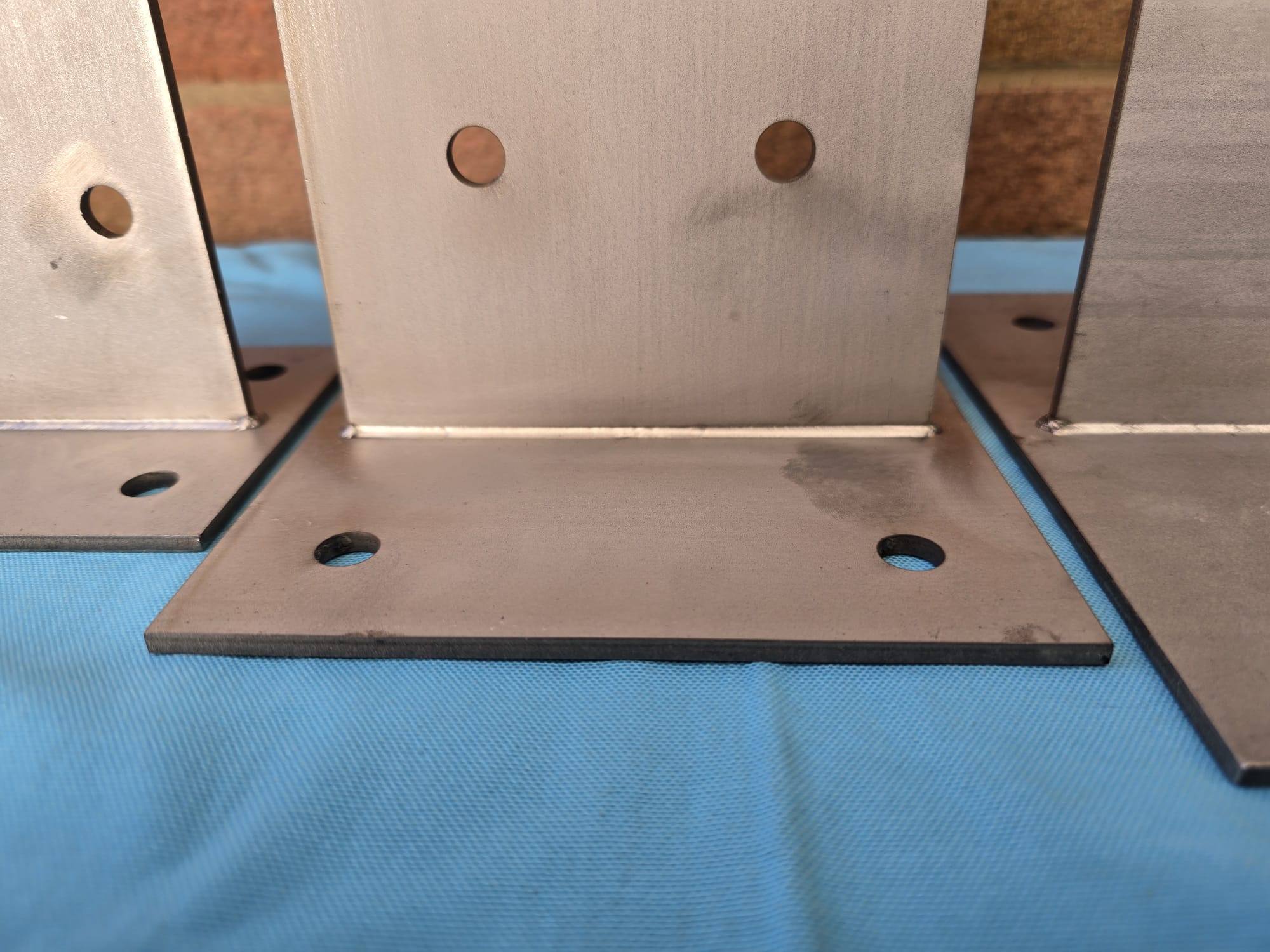

full length welds

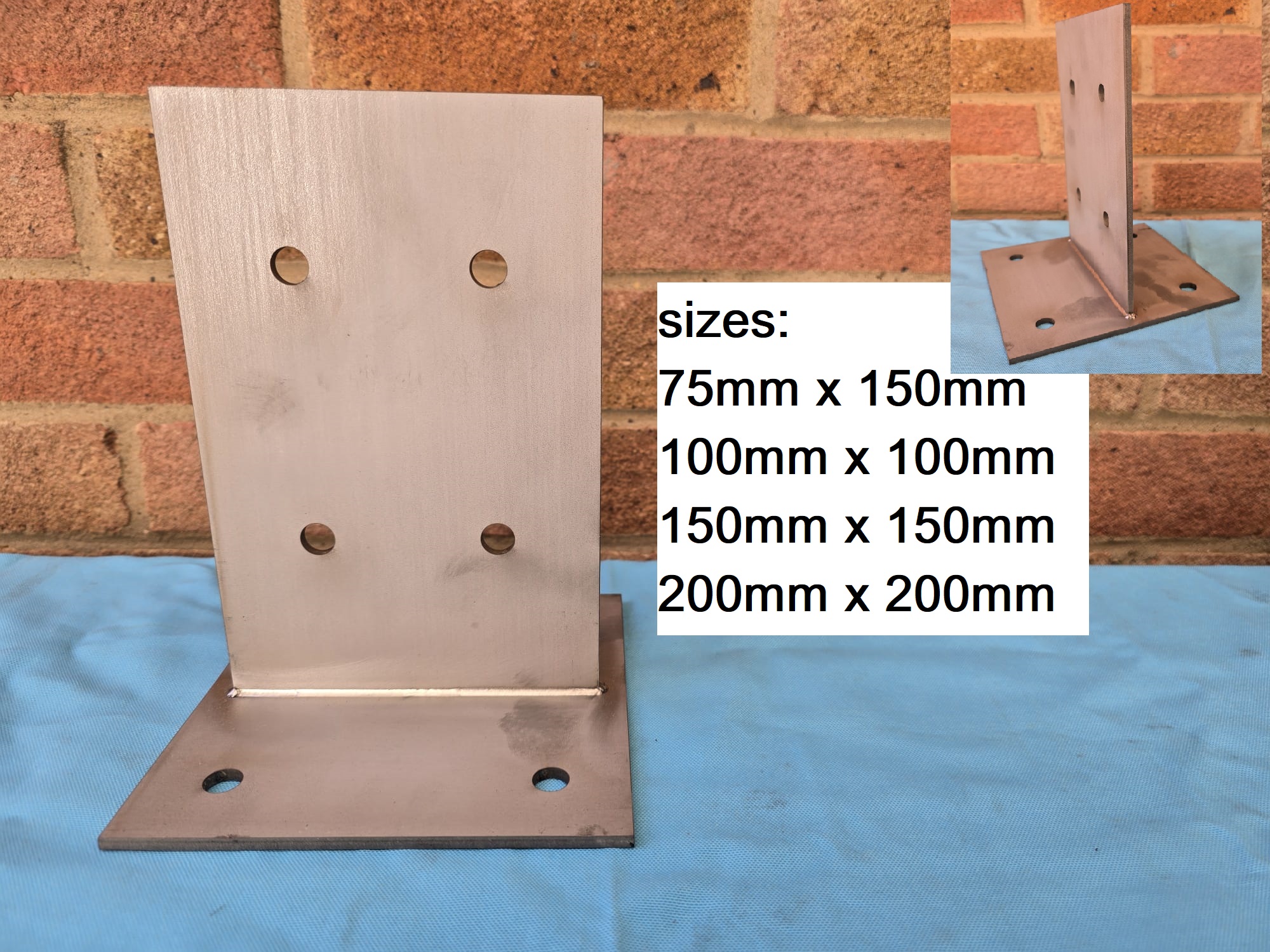

Dimensions:

Base: 75mm x 150mm
Plate : 65mm width x 150mm x 200mm height
thickness 4mm

Base: 100mm x 100mm
Plate : 80mm width x 150mm height
thickness 4mm

Base: 150mm x 150mm
Plate : 130mm width x 200mm height
thickness 4mm

Base: 175mm x 175mm
Plate : 155mm width x 225mm height
thickness 4mm

Base: 200mm x 200mm
Plate : 180mm width x 250mm height
thickness 4mm

Connectors can go in any direction: vertically, horizontally or even diagonally!

To install, a slot is cut in the base of the timber post to fit over the post support

giving a neat finish with just the bolts showing.

For timber connection:

This connector is mostly hidden and no special skills are required.

T Connectors greatly simplifies post and beam construction by eliminating the need
to cut mortise-and-tenon joint. After mounting our post and beam connectors on the posts
with wood screws, the horizontal and diagonal members are slotted, holes are drilled
from the back side, and then solid pins are driven through the plates to make a strong,
concealed connection.

It keeps the concrete footing

and fence post totally off the ground. So the wood is free of damage of termites.

Additionally, the holes on plates means that it is easy and firmly to fix the post anchor on the cement flooring.

So it is widely used in concrete structure. It facilitates fixing of the wooden elements

with concrete, assures appropriate separation between wood and substrate.
