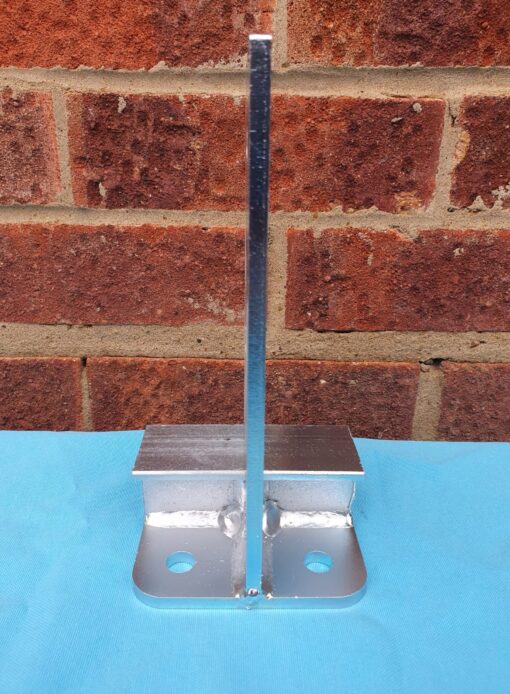

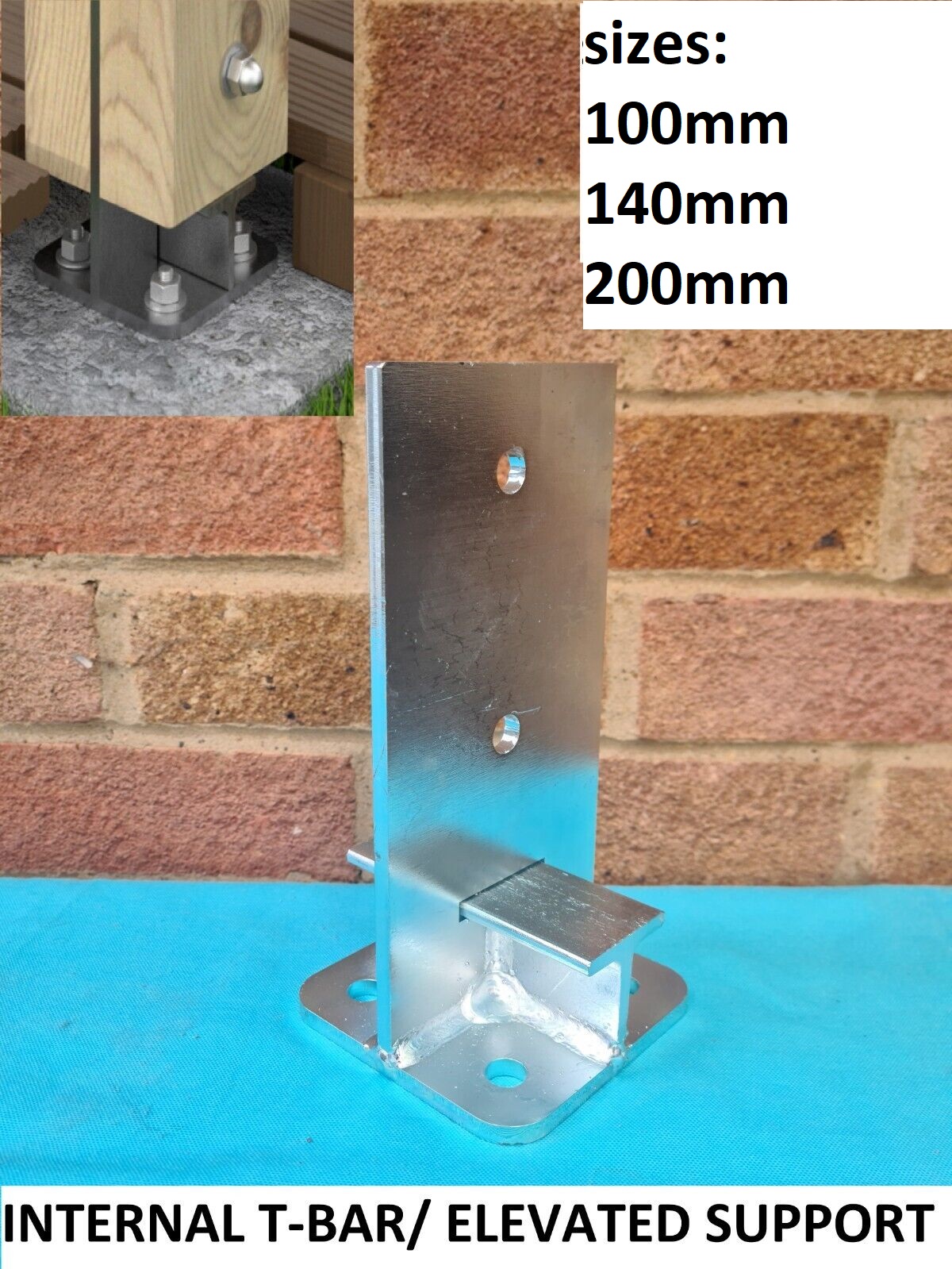

HEAVY DUTY GALVANISED INTERNAL POST FENCE FOOT/ SUPPORT/ANCHOR T-BAR , ELEVATED T-Blade Connector

£16.30 – £64.50 including VAT

Clear
Add to wishlist
SKU: N/A Categories: ,

Description

ONE HEAVY DUTY GALVANISED INTERNAL POST FENCE FOOT/ SUPPORT/ANCHOR T-BAR , ELEVATED T-Blade Connector  100mm 4″ 140mm 5 1/2″



100mm (4″)
HEIGHT 200mm ;
ELEVATION 41mm
THICKNESS 6mm
HOLES 12mm
Weight 1.6kg
140mm / (5 1/2″)
HEIGHT 200mm ;
ELEVATION 41mm
THICKNESS 8mm
HOLES 12mm
Weight 3.73kg
200mm / (7.87″)
HEIGHT 200mm ;
ELEVATION 41mm
THICKNESS 8mm
HOLES 12mm
Weight 4.85kg




RECOMMENDED FIXINGS M10Material: S235 + silver galvanization PN-EN ISO 1461

SET OF FIXINGS/ CONNECTORS/DOWELS AVAILABLE HERE :
https://www.adnacomponents.co.uk/product/set-of-dowels-connectors-100mm-150mm-200mm/

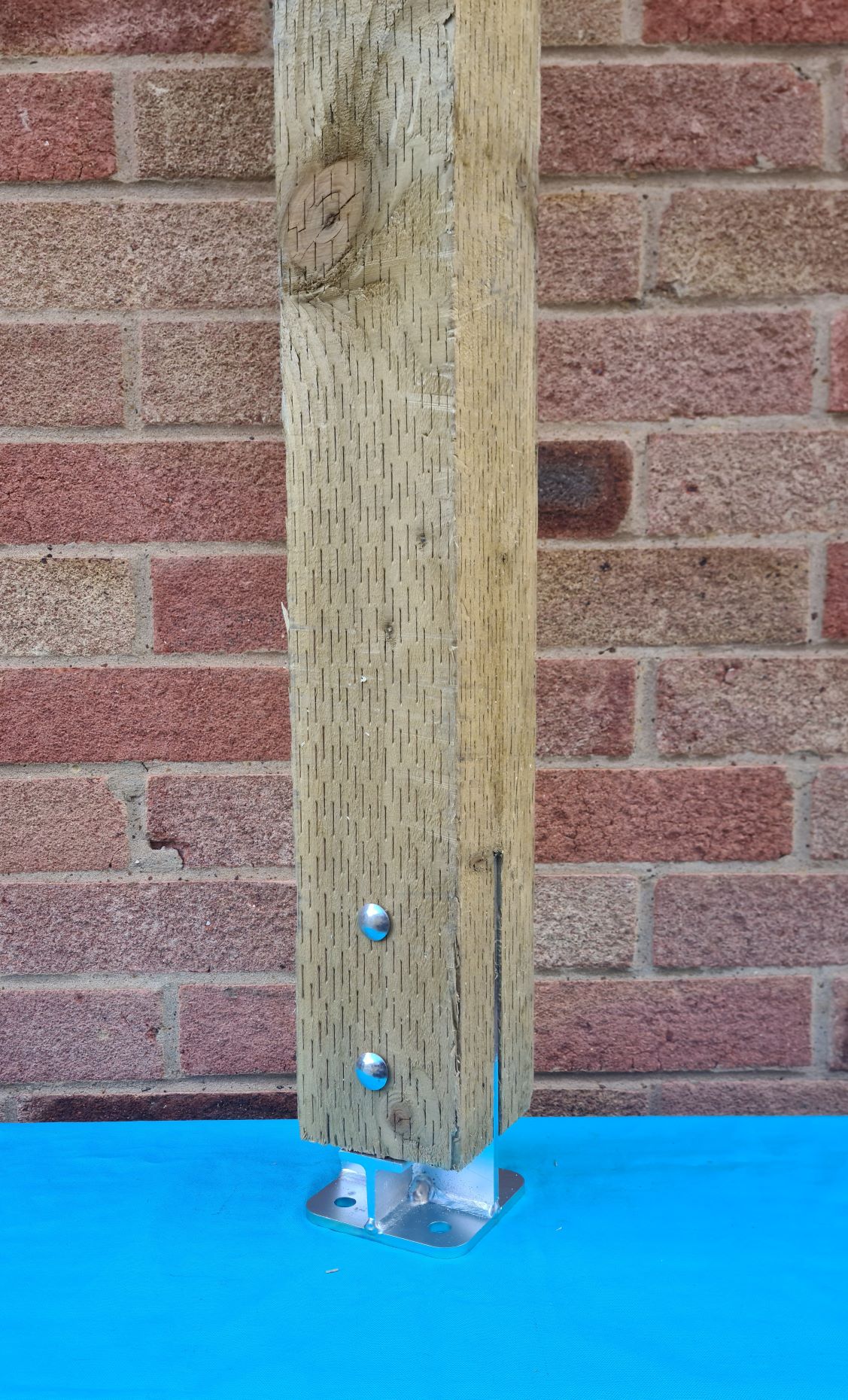

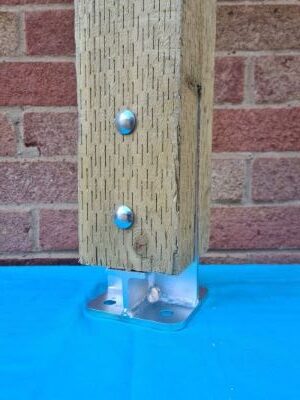

The base is used to connect wooden poles with concrete. The T-bar located at the bottom of the base allows the beam to rest on it, which improves the stability of the structure and guarantees additional expansion of the column from the ground.



Advantages:

Comply with building code requirements

Long term of providing protection

Enhance the stability of the post

Perfect for timber post

Anti-rust

Can be used in humid environments

Additionally, the zinc plating means it is corrosion resistant so that it can be used for a very long time and makes your cost effective
